Cabezal F5

CABEZAL F5

Adaptable for excavators and special carriers having a weight between 25 and 50 t.
Steel-plate chassis of 10 mm with the hooking screwed on the top of the mulcher which reinforce the chassis, giving the possibility of several positions of use.
Suitable for the maintenance of forest, riverbanks, bushes up to 250 mm of diameter.

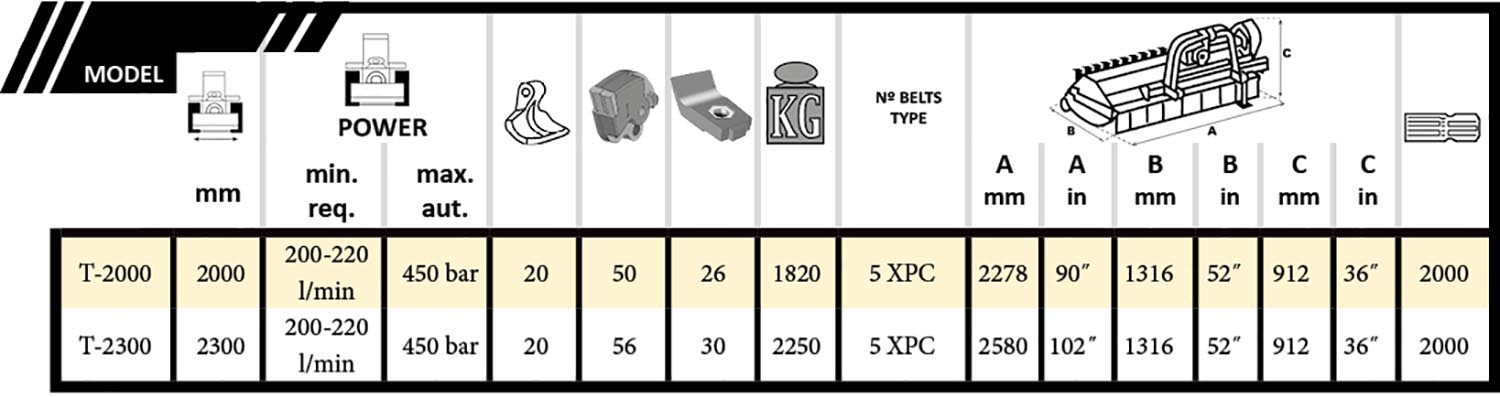

Characteristics

File Cabezal F5

Non-wear steel-plate chassis, thickness 10 mm.


Rotor POLSER + of Ø 625 mm.


Mulcher for excavators having a weight between 25 and 50 T.


5 XPC side belt transmission.


Double safety chains.


Swinging forged forestry hammers 360° or fixed tooth with tip in tungsten or blades DRR.

High speed and high strength bearings.


Hydraulic engine with pistons.


Valve of recirculation incorporated into the motor.


Front skid shoes.


Model built under EC Normative.


Safety indicators visible to personnel.

Serrat Advantages

Fixe Top
620+ polser
Cabezal F5

CABEZAL F5 IN ACTION

HYDRAULIC DOOR

MECHANICAL DOOR

Discover Cabezal F5
